MOBILE CONSTRUCTION WASTE RECYCLING PLANT IN HENAN, CHINA
project overview

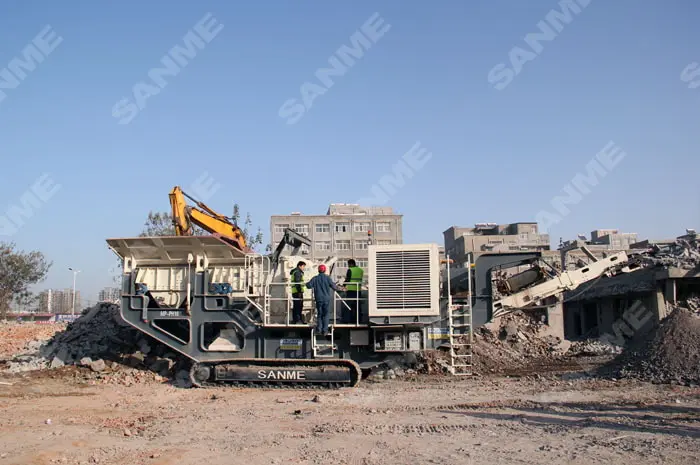

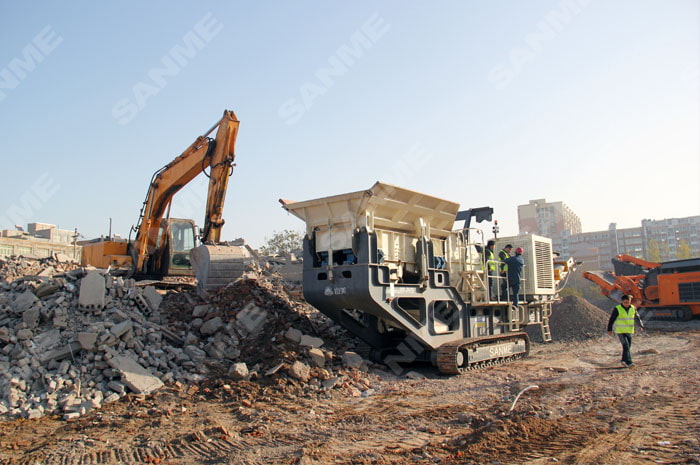

The initial treatment of construction waste is an important factor affecting the brick making of construction waste. Mobile crushing stations are needed to sort, crush and screen construction waste. This mobile crushing station that can crush and process construction waste consists of primary screening equipment, impact crusher, magnetic iron remover and necessary transfer equipment. The mobile crushing station for construction waste can process the demolished waste in different categories at the demolition site or nearby areas, or at the construction site where the processed waste is needed.
The transported construction waste is divided into two parts by the primary screening equipment. The coarse material on the screen is sent to the crusher for further crushing. The crushed material is removed by the magnetic iron remover to remove the blocky iron material. The mobile crushing station adopts a special separation process, such as separating the undesirable materials on the conveyor belt by means of pneumatic or wet washing methods.
This type of factory is also equipped with classification equipment, such as the use of turbulent vibration equipment to classify and separate light materials such as wood, plastic, paper and slightly contaminated materials.The crushed materials can also be divided into inorganic mixed aggregates with different uses and particle sizes.
For example, in Germany's fixed construction waste recycling and processing plants, the recycled construction waste is processed into inorganic mixed aggregates of 0-32mm, 0-45mm, and 0-65mm in accordance with the requirements of the German standard DIN4226. Granular aggregates with required grading can also be provided for special occasions, such as graded aggregates of 0-8mm, 8-16mm, and 16-32mm.
Equipment Configuration Table
| Product Name | Model | Number |
| Mobile Impact Crushing Plant | MP-PH10 | 1 |
