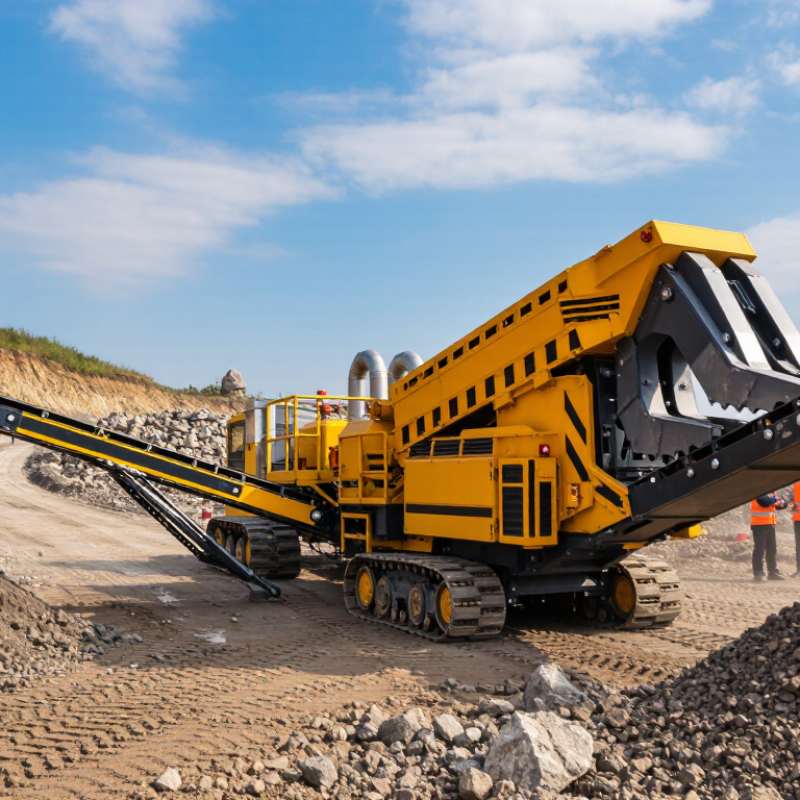

How to Choose the Best Portable Jaw Crusher?
A Portable Jaw Crusher can turn a rocky worksite into a steady feed of usable material. Choosing one is less simple. A compact frame may fit a narrow access road, yet struggle with oversized feed or long shifts. Look beyond headline capacity. Check the crusher opening, engine power, transport dimensions, and expected output size. Ask how quickly the machine can be set up beside the excavation. Small details matter. Mud around the tracks, dust near the controls, and a blocked discharge conveyor can each slow production.
For this introduction, Alex Morgan is a fictional equipment specialist, and the following line is an original editorial quote, not a sourced statement: “Choose for the rock you have, the roads you travel, and the hours you actually run.” Use that idea to compare machines against real site conditions. Hard, abrasive stone calls for different wear-part planning than softer feed. A tight site may favor a smaller footprint, but limited space can complicate maintenance. There is no perfect model. Buyers should request documented performance data for comparable material and ask operators about service access, noise, and routine inspection points. A specification sheet helps, but it cannot settle every question. Even experienced teams sometimes underestimate cleanup time. That deserves a second look. This guide outlines the practical checks that make a Portable Jaw Crusher easier to evaluate before purchase.
Set Feed and Product Targets: Jaw Crushers Commonly Reduce 4:1–6:1
How to Choose the Best Portable Jaw Crusher?
Set the feed and product sizes before comparing portable jaw crushers. A common reduction ratio is 4:1 to 6:1, meaning the feed is roughly four to six times larger than the product. For example, reducing 600 mm stone to about 150 mm is a 4:1 ratio; reaching 100 mm is 6:1. These figures are planning guides, not guaranteed results.
Actual output depends on rock hardness, feed shape, moisture, and the closed-side setting. Measure the largest pieces entering the jaw, then define the product size your next machine can handle. Check samples from a trial run, too. A crusher may pass the target size on paper yet produce a different blend in the field. Annoying, but useful to know early.
A tighter setting can make smaller material, but it may also increase fines and strain the circuit. Watch the discharge belt for oversized stones, dust, and uneven flow. If the feed varies, leave room in your target rather than sizing everything around one ideal number. The 4:1–6:1 range is a starting point; the right setting still needs checking against real material and daily throughput.
How to Choose the Best Portable Jaw Crusher?
Set feed and product targets: jaw crushers commonly reduce material at a 4:1–6:1 ratio.
Illustrative calculation using reduction ratio = feed size ÷ product size. For a 600 mm feed, the corresponding product-size targets are 150 mm, 120 mm, and 100 mm. Actual results depend on material, crusher settings, and operating conditions.
Size the Jaw Opening: A Common Rule Limits Feed to About 80% of Gape
When choosing a portable jaw crusher, match the feed opening, or gape, to the largest pieces you expect to process. A common rule limits feed to about 80% of the gape. For a 24-inch opening, that means rocks should generally measure no more than about 19 inches across. Measure the rock. Its longest dimension matters, not just its width when viewed from above.
This rule helps reduce bridging and uneven loading, but it is not a guarantee. Angular boulders can wedge where rounded stones pass. Wet, sticky fines may also crowd the chamber and slow discharge. A site crew should compare the crusher’s stated opening with actual feed samples, including awkward pieces from the loading pile. The rule is useful, but not perfect.
If oversize rock reaches the jaw, the operator may need to separate it or reduce it before crushing. That extra handling takes time. Check the opening dimensions in the equipment specifications, and ask whether they describe the feed gape or another measurement. When possible, observe a trial with representative material. Watch for repeated stalls, jaw congestion, and irregular discharge; these signs suggest the feed size or blend needs adjustment.
Compare Rated Throughput in t/h at the Required Closed-Side Setting
When comparing portable jaw crushers, check rated throughput at the closed-side setting (CSS) your product requires. A capacity figure without its CSS is incomplete. A machine may handle more tonnes per hour with a wider setting, but produce larger material. If your target is a tighter product, compare figures at that tighter setting—not the machine’s maximum headline rate.
Read the manufacturer’s capacity chart and note the rock type, feed size, and moisture assumptions. Hard, abrasive stone can reduce output; wet, sticky feed may bridge or slow material flow. Keep the feed opening in mind, too. Oversized chunks can interrupt steady feeding, even when the crusher’s rated capacity looks ample. Small details matter.
On site, compare tonnes per hour with the discharge size and downstream screening plan. A crusher producing 120 t/h at one CSS may not sustain that rate when feed grading changes. Ask how the rating was measured, and whether it describes continuous operation or a test condition. Then leave practical room below the quoted figure. Actual production can still vary. The chart is a starting point, not a promise.
How to Choose the Best Portable Jaw Crusher? - Compare Rated Throughput in t/h at the Required Closed-Side Setting
Use the required closed-side setting (CSS) and your planned sustained production rate to shortlist machines. The minimum rated throughput below is calculated using an 80% planning utilization factor: required rating = target sustained throughput ÷ 0.80. These are selection thresholds, not manufacturer specifications.
| Example application |
Required CSS (mm) |
Target sustained throughput (t/h) |
Minimum rated throughput to shortlist (t/h) |
What to verify before selecting |
| Small site or low-volume primary crushing |
50 |
40 |
50 |
Capacity at 50 mm CSS, feed size, and material hardness |
| General-purpose primary crushing |
75 |
80 |
100 |
Rated capacity at 75 mm CSS with the expected feed gradation |
| Higher-volume quarry or recycling operation |
100 |
120 |
150 |
Capacity at 100 mm CSS, maximum feed size, and feed consistency |
| Large-volume primary crushing |
125 |
200 |
250 |
Capacity at 125 mm CSS and compatibility with the downstream circuit |
Comparison note: Ask each supplier for rated throughput at the same CSS and under comparable conditions. Actual production varies with rock type, moisture, feed gradation, feed method, and circuit design. Confirm the quoted rating and CSS using the machine’s technical data and application-specific test results.
Match the Powertrain and Mobility to Site Conditions and Haul Limits
A portable jaw crusher’s powertrain should match the energy available on site, not an idealized production plan. Diesel-hydraulic units can suit remote or changing work, while diesel-electric layouts may be efficient during steady operation. If grid power is available, an electric drive can reduce fuel handling, but cable routing and setup time matter. Check throughput against feed size, rock hardness, and daily operating hours. Small details count.
Tracked machines can cross rough or soft ground with less preparation, but they are not automatically easier to haul. Wheeled units may suit firm yards and frequent road transfers, if towing and loading equipment are available. Measure access roads, turning areas, gradients, and the working pad after rain. Compare transport width, height, total mass, and axle loads with the carrier’s limits; include conveyors and attachments. An overlooked attachment can change the plan.
Ask for transport drawings and operating weights in the exact configuration you plan to move. Confirm how long it takes to switch between travel and crushing, and what tools or crew are needed. Transport planning is easy to underestimate; it can quietly erase a production advantage. Real sites rarely match brochures. Leave margin for wet ground, fuel access, and maintenance stops. A modest output penalty may be preferable to a machine that cannot reach the face or leave the site.
Assess Wear-Part Life, Service Access, and Total Operating Costs
Wear-part life is not a fixed number. Abrasive rock, feed size, moisture, and crusher setting all affect it. Track tonnes processed between jaw-plate changes, not only engine hours. During planned stops, inspect cheek plates, toggle seats, and fasteners. Small gaps matter. Uneven wear can reduce chamber capacity and increase recirculation. Before buying, check replacement-part costs, delivery times, and lifting requirements. A part that is cheap but difficult to change can cost more in lost production.
The USGS Mineral Commodity Summaries 2025 estimates U.S. crushed-stone output at about 1.5 billion tons in 2024, valued at roughly $25 billion. Those figures show the sector’s scale, but they cannot predict one site’s crusher costs. Compare machines by cost per saleable ton, including fuel, labor, wear parts, transport, and downtime. Ask how quickly crews can reach service points and remove heavy components in the field. A spreadsheet can still flatter a machine. Test estimates against actual shift logs, and revise them when rock conditions change.
